EX CABLE GLAND
>E1FW(a1upe)
Single Wire Armoured Calbe Gland
1. Type of Cable Gland
DNEXER / E1FW(for AluPE bonding)
2. Cable Type
Single Wire Armoure(SWA) - Steel or Aluminum Wire Armoure
/ AluPE Earthing
3. Double Compression
Cable inner bedding & Outer Sheath.
4. Indoor and Outdoor use / Dual certified Ex ‘d’ & Ex ‘e’
5. Operating Temperature
-60℃ to +100℃
6. Materials
Brass, Brass with nickel plated, Aluminum and Stainless Steel 316.
7. According to BS,IEC & CENELEC suitable for use in Zone1, Zone2, Zone21 and Zone22, Gas Groups, IIA, IIB and IIC.
8. Ingress Protection
IP66/67
9. Certificate No
Baseefa08ATEX0326X & IECEx BAS08.0116X
10. Accessories
Lock-Nut, Sealing washer, Serrated washer,
Earth Tag and PVC Shroud - see page A40
Deluge Seal can be provided upon on request.
► How to order
DNEXER-25a / M25
Cable Gland Type & Size / Entry Thread Size(metric, NPT)
| Gland Size |
Entry Thread Size |

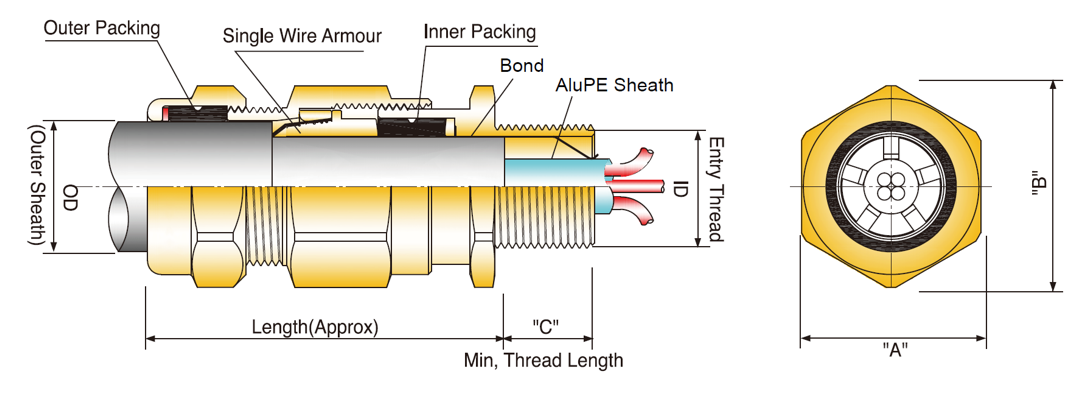

Cable Acceptance Details | Hexagon Dimensions |
Thread Length ＂c＂ | Length | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner Sheath `id` | Outer Sheath `OD` | Armour Size |
||||||||||||||
| Standard Seal |
Alternavive Sea (S) |
Across Flats ＂A＂ |
Across Comers＂B＂ |
Metric (optional) |
NPT | PG | ||||||||||
| Metric | NPT | Min. | Max. | Min. | Max. | Min. | Max. | Min/Max. | ||||||||
| DNEXER-2016 | M16/M20 | 1/2” | 3.0 | 6.5 | - | - | 7.0 | 12.0 | 0.9/1.25 | 24 | 26.8 | 15(20) | 20 | 15 | 49 | |
| DNEXER-20a | M20 | 1/2” | 4.5 | 8.0 | 5.0 | 8.5 | 7.0 | 12.0 | 0.9/1.25 | 24 | 26.8 | 15(20) | 20 | 15 | 55 | |
| DNEXER-20b | M20 | 1/2” | 7.5 | 10.5 | 5.0 | 8.0 | 10.5 | 16.0 | 0.9/1.25 | 24 | 26.8 | 15(20) | 20 | 15 | 55 | |
| DNEXER-20c | M20 | 1/2” | 8.5 | 11.9 | - | - | 10.5 | 16.0 | 0.9/1.25 | 24 | 26.8 | 15(20) | 20 | 15 | 55 | |
| DNEXER-20d | M20 | 1/2” 3/4” |
11.0 | 14.7 | 8.5 | 12.5 | 14.3 | 20.0 | 0.9/1.25 | 28/30 | 31/33.5 | 15(20) | 20 | 15 | 58 | |
| DNEXER-25 DNEXER-25a |
M25 | 3/4” 1” |
13.0 | 20.2 | 9.5 | 15.4 | 16.5 18.5 |
24.0 26.0 |
20 | 1.25/1.6 | 36 | 40.5 | 15(20) | 20 25 |
15 | 70 |
