COMPRESSION LUGS
>Terminal-Two Hole
Aluminum Cable Lug
1. Material
High Conductivity Wrought Aluminum with Heavy Duty Wall Thickness.
2. Voltage Rating
600V to 35kV.
| Wire Range |
Part No. | Stud Size |

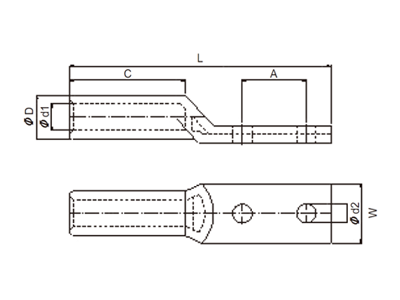

Dimension | - | - | - | - | - | - | Dies Part No. |
|---|---|---|---|---|---|---|---|---|---|---|
| Metric | W | ΦD | Φd1 | Φd2 | A | C | L | |||
| 95 | PPAT0095 - LS08 | 8 | 29.5 | 22.5 | 12 | 8.5 | 44.5 | 70 | 160.5 | DCL3 - 0095C |
| PPAT0095 - LS10 | 10 | 10.5 | ||||||||
| PPAT0095 - LS12 | 12 | 13.5 | ||||||||
| 240 | PPAT0240- LS08 | 8 | 43 | 32 | 19.2 | 8.5 | 44.5 | 80 | 181.5 | DCL3 - 0240C |
| PPAT0240 - LS10 | 10 | 10.5 | ||||||||
| PPAT0240 - LS12 | 12 | 43.5 | ||||||||
| 400 | PPAT0400- LS08 | 8 | 53.5 | 40 | 24.2 | 8.5 | 44.5 | 100 | 211.5 | DCL3 - 0400C |
| PPAT0400 - LS10 | 10 | 10.5 | ||||||||
| PPAT0400 - LS12 | 12 | 13.5 |
